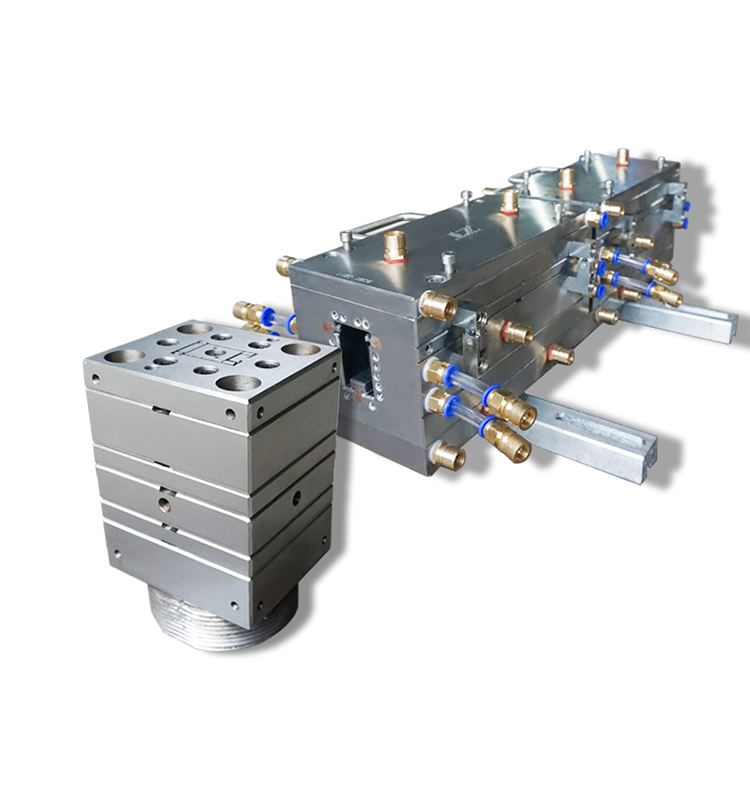

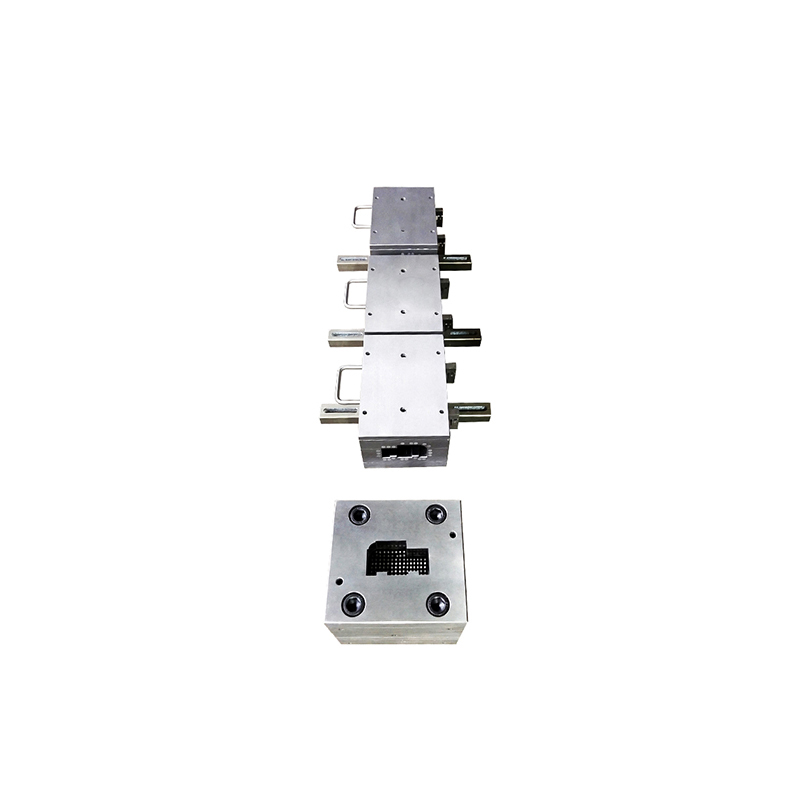

UPVC PVC Door Extrusion Mold
- ZHONGTAI MOULD
- HUBEI HUANGSHI
- 30 DAYS
- 1000 sets per year
- Material: PVC, UPVC
- It's used for making UPVC PVC solid door frame.
- High extrusion speed
- Easy to use and replace
- Long-term
- Can be repaired
- Mould Material has been specially treated. Which is to extend the service life.
- Mould head is designed with inside and outside double circulating water cooling system to shape the profile quickly.
| Mould Name | PVC Foam Door Frame Extrusion Die |
| Material of Mould | 3Cr17 Nimo or Germiny Din 1.2316 |
| Mould Component | Die Head + Calibrator + Water Tank + Heating Zones |
| Mould Cavity | 1 |
| Surface Treament | Mirror Polished + Chrome Plated |
| Profile Material | PVC, UPVC |
| Extrusion Speed | 3 meters per minute |
| Testing | Mould will be tested before leave factory |
| Package | Wood/Polywood case (standard export packing) |
| Lead Time | 30 days after contracted |

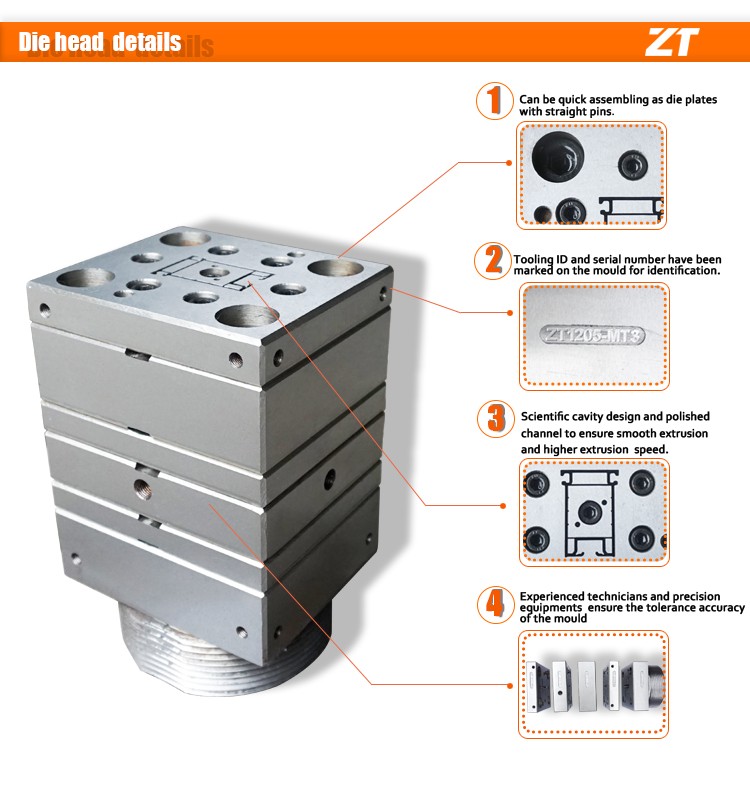

Mould Head Features:
1. Can be quick assembling as die plates with straight pins.
2. Scientific cavity design and polished channel to ensure smooth extrusion and higher extrusion speed.
3. High quality hard chrome plating 3Cr17 nimo / Din1.2316 mould steel.
4. Experienced technicians and precision equipments ensure the tolerance accuracy of the mould.
5. Scientific designed extrusion channel.

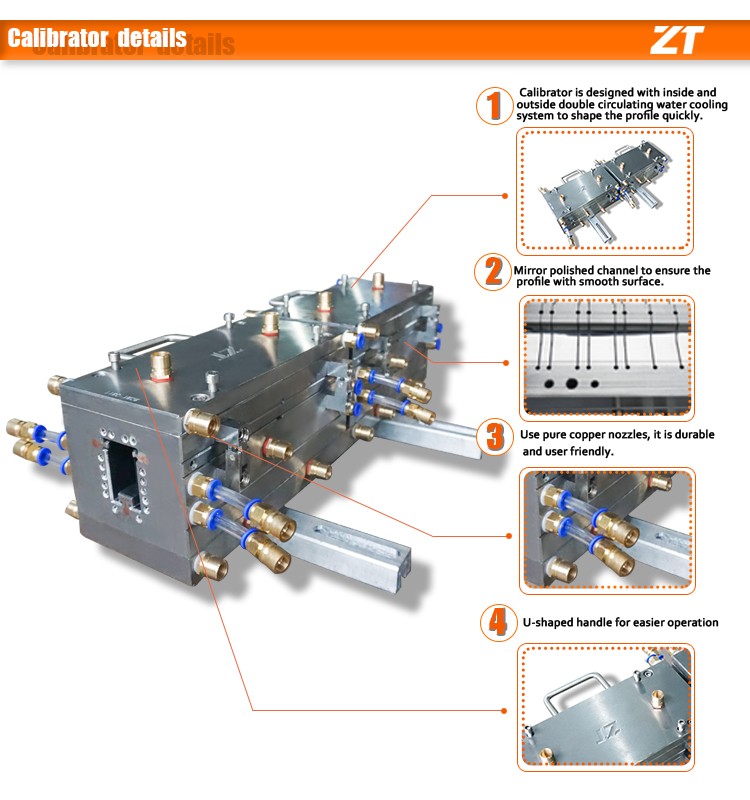

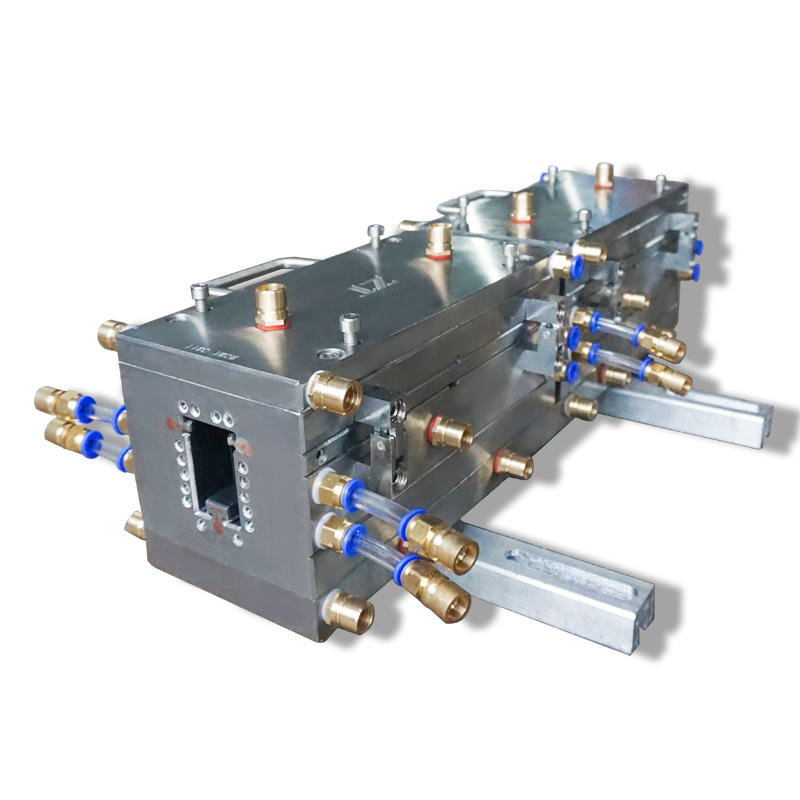

Calibrator Features:
1. Calibrator is designed with inside and outside double circulating water cooling system to shape the profile quickly.
2. Mirror polished channel to ensure the profile with smooth surface.
3. Use pure copper nozzles, it is durable and user friendly.
4. U-shaped handle for easier operation.
5. Mould material has been specially treated, which is to extend the service life.
Water Tank Features:
1. High-quality vacuum negative pressure water tank with high-strength PMMA board combined with stainless steel plate edging.
2. The main advantages of the water tank are good cooling effect, uniform cooling and accurate forming dimensions.
Packing and shipping:
All the moulds will be packed by wooden case, which can protect the mould very well, and the wooden case is fumigation-free.
If the mould is small or lighter, we can send the mould to you by express delivery, such as TNT, DHL, FEDEX, UPS etc. If the mould is big and heavy, recommend to use air shipping or sea shipping through your nominated forwarder agent. Our long-term cooperated agent also is available.
FAQ:
Q1. Are you a trading company or a manufacturer?A: We are a manufacturer and have more than 20 years experience in mould, and our professional team will help you make a most suitable solution to save your cost.
Q2. How about quality control in our company and delivery time?
A: Every piece of goods is tested strictly before packing and delivery. Generally, it take 45 days. It depends on the mold’s size and complexity.
Q3. How to receive an quotation in the shortest time?
A: When you send us inquiry, please kindly make sure all details with us, such as quantity, cavity, sample etc. You can provide us a sample, we will help finish the 3D drawing design.
Q4. How to ensure the products' quality before shipment?
A: We will supply picture report or send you videos to show the production process.
Q5. Can i get sample ?
A: We can provide free sample, but you need to afford the shipping costs.
Q6. Can I get discounts?
A: Yes. Old customer and frequent customers, we give reasonable discounts.
