WPC Foaming Wall Panel Extrusion Mold
- ZHONGTAI MOULD
- HUBEI HUANGSHI
- 30 DAYS
- 1000 sets per year
- Material: WPC, PVC

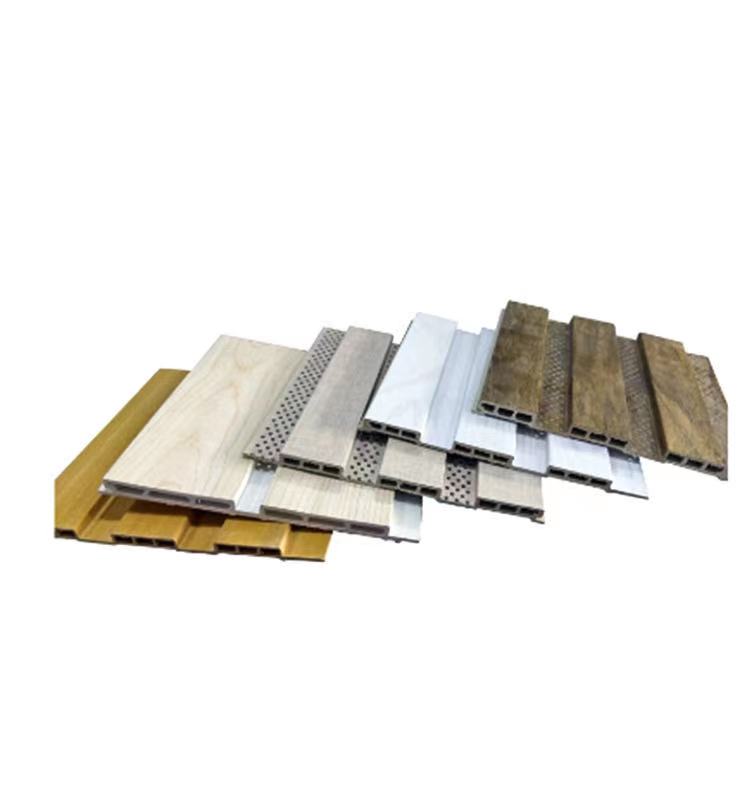

- Such like ceiling panel, ceiling board, siding panel.
- High extrusion speed
- Easy installation
- Long-term
- Can be repaired
| Mould Name | WPC Foam Wall Panel Extrusion Mould |
| Material of Mould | 3Cr17 Nimo or Germiny Din 1.2316 |

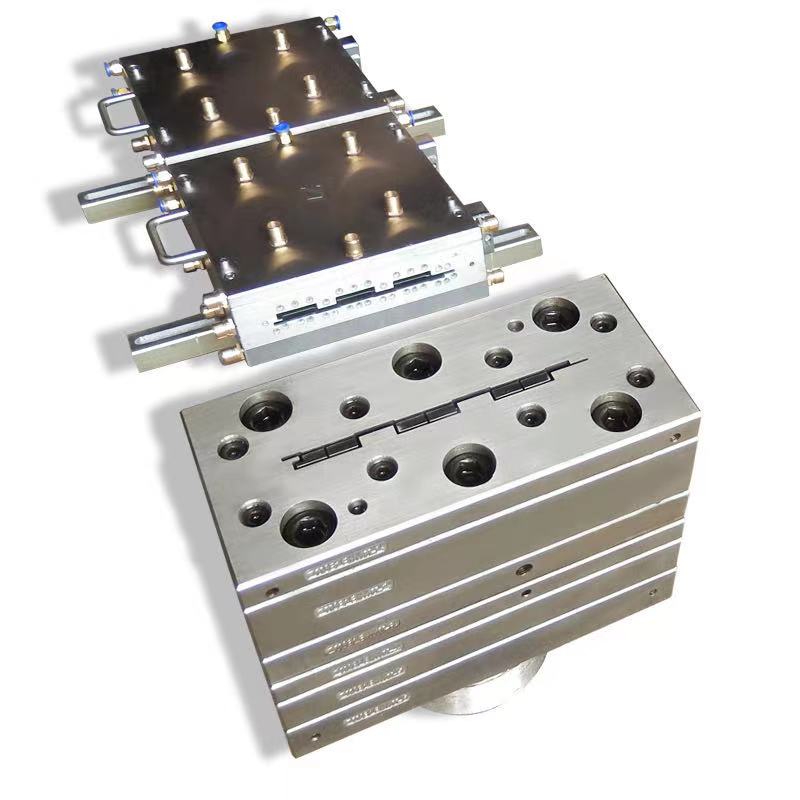

| Mould Component | Die Head + Calibrator + Water Tank + Heating Zones |
| Mould Cavity | 1 |
| Surface Treament | Mirror Polished + Chrome Plated |
| Profile Material | WPC, PVC |
| Extrusion Speed | 2 or 3 meters per minute |
| Testing | Mould will be tested before leave factory |
| Package | Wood/Polywood case (standard export packing) |
| Lead Time | 30 days after contracted |

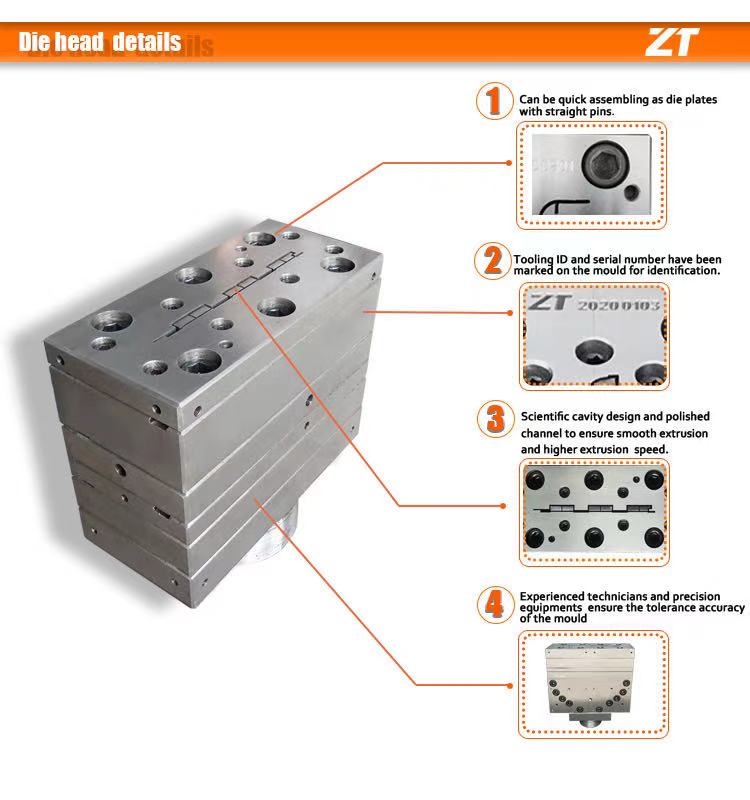

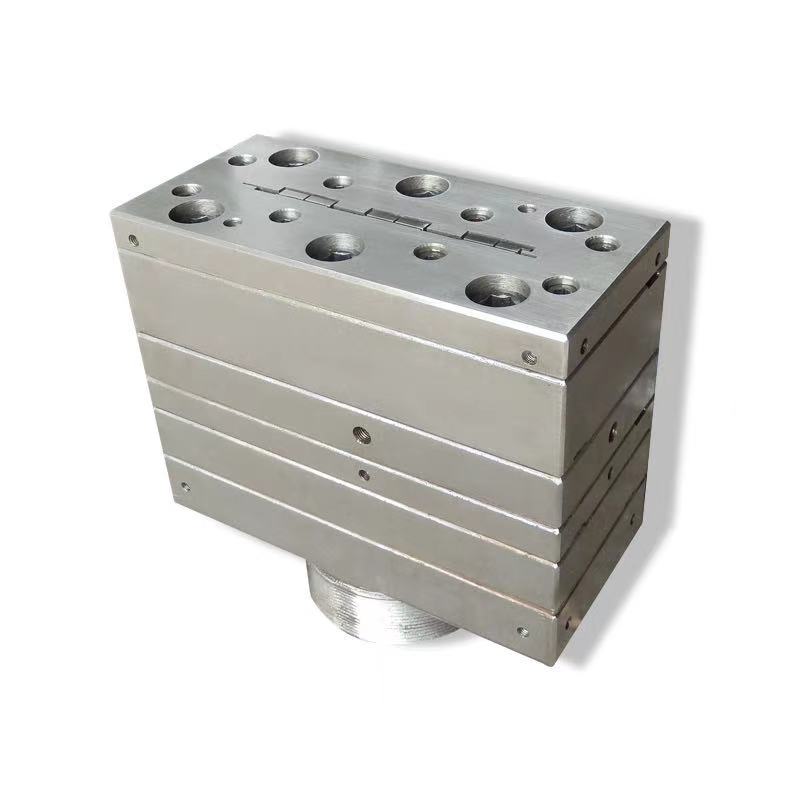

Mould Head Features:
1. Can be quick assembling as die plates with straight pins.
2.Scientific cavity design and polished channel to ensure smooth extrusion and higher extrusion speed.
3. High quality hard chrome plating 3Cr17 nimo / Din1.2316 mould steel.
4. Experienced technicians and precision equipments ensure the tolerance accuracy of the mould.
5.Scientific designed extrusion channel.

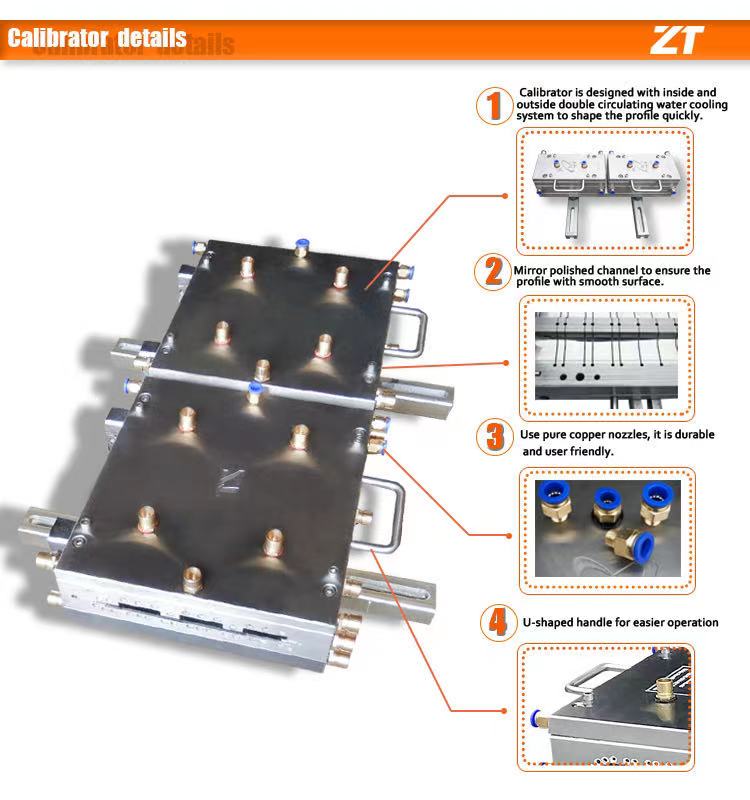

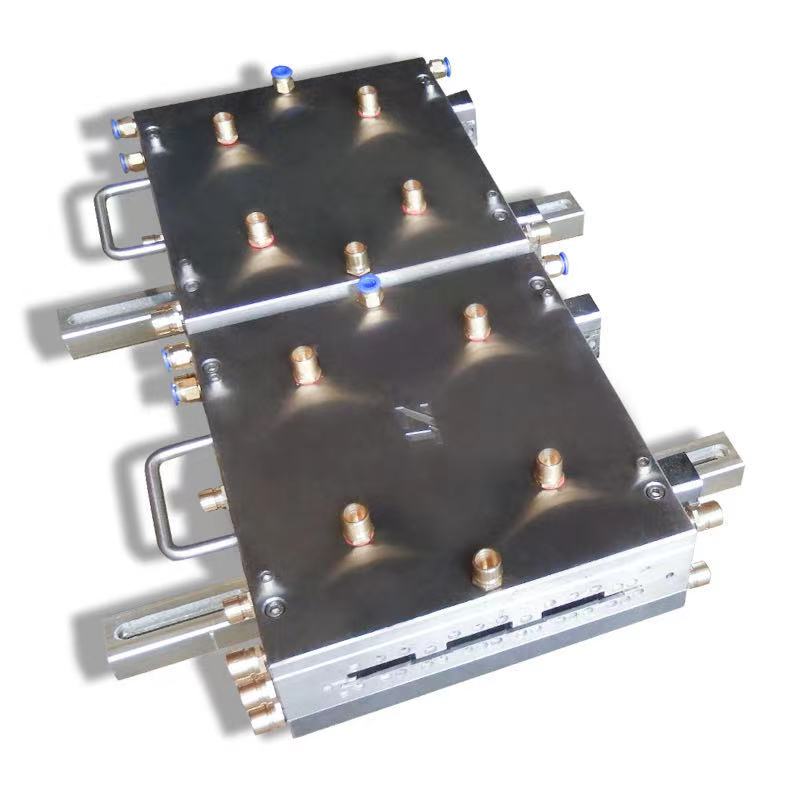

Calibrator Features:
1. Calibrator is designed with inside and outside double circulating water cooling system to shape the profile quickly.
2. Mirror polished channel to ensure the profile with smooth surface.
3. Use pure copper nozzles, it is durable and user friendly.
4. U-shaped handle for easier operation.
5. Mould material has been specially treated, which is to extend the service life.
